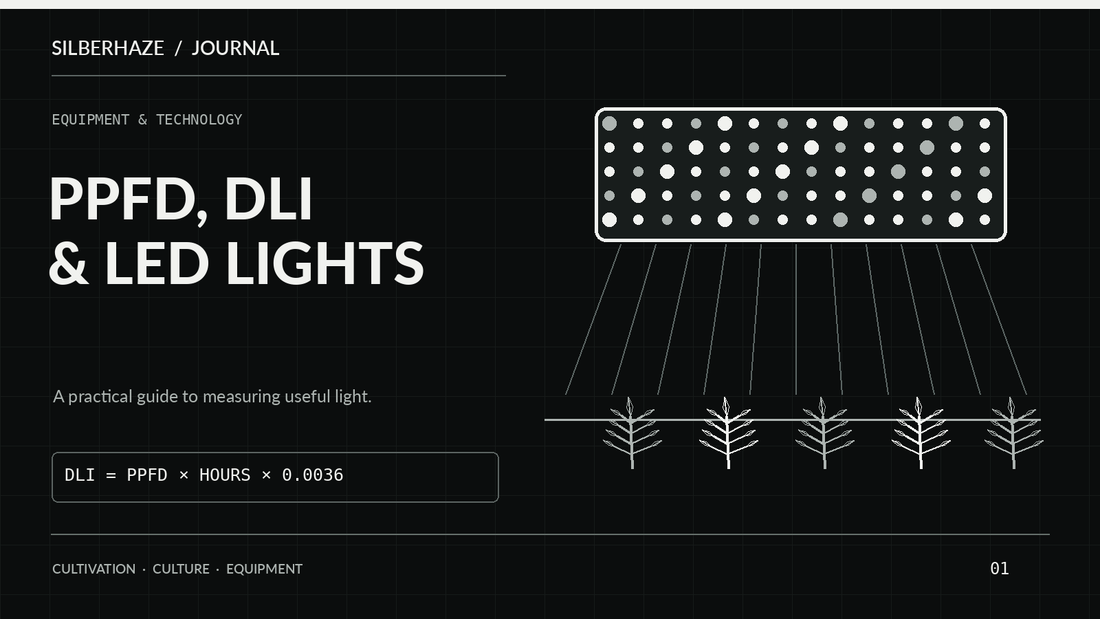

Original monochrome LED canopy schematic explaining PPFD and DLI

PPFD, DLI and LED Grow Lights: What the Specifications Really Mean

When comparing LED horticultural lighting, wattage is only a starting point. A fixture's electrical input does not tell you how many photosynthetically active photons reach the crop, how evenly they arrive, or how much light accumulates over a day. Those are different questions, and growers need different measurements to answer them.

Three quantities that should not be confused

PPF (photosynthetic photon flux) describes a source's photon output within the conventional photosynthetically active radiation (PAR) waveband, typically 400–700 nanometers. It is expressed in micromoles per second (µmol/s). PPF describes total output, not the light received at a particular position.

PPFD (photosynthetic photon flux density) describes the photon flux received per unit area at the measurement plane, in µmol/m²/s. PPFD therefore depends on the luminaire, its mounting height, the measured position, and the surroundings. A striking PPFD value in the middle of a fixture's footprint may conceal substantially lower values at the edges.

DLI (daily light integral) is the total PAR photon dose received per square meter during a day, expressed in mol/m²/day. Unlike a single PPFD reading, DLI incorporates exposure duration. For a steady PPFD during a fixed photoperiod, the calculation is:

DLI = average PPFD × light hours × 0.0036

The conversion factor accounts for 3,600 seconds per hour and 1,000,000 micromoles per mole. At an average PPFD of 400 µmol/m²/s for 16 hours, the DLI is 23.04 mol/m²/day. The same fixture at a different height or dimming setting may give a different result. For variable natural sunlight or changing artificial output, DLI should be calculated from time-resolved measurements rather than one instantaneous reading.

Why a center-only PPFD claim is not enough

Plants occupy an area, not a single point directly below the light. A useful PPFD map shows readings distributed across the proposed growing footprint at a stated height and fixture setting. Compare the center with the corners and edges, and assess the average across the measurement grid. Two luminaires with similar peak readings can create different crop-level light environments if one has a much larger center-to-edge drop.

Manufacturer PPFD maps can provide an initial comparison, but check their test conditions. Ask whether values describe a reflective grow tent, an open bench, or another environment; whether they were measured at full output; the fixture-to-canopy distance; and the footprint size. A larger claimed footprint is not automatically better if its outer regions receive much less light.

Fixture efficiency versus crop-level usefulness

Photosynthetic photon efficacy, commonly expressed in µmol/J, compares photon output with electrical input. Higher efficacy can be valuable, especially when electricity is costly, but it does not by itself prove that a fixture delivers a suitable PPFD distribution for your growing area. Consider efficacy, total PPF, canopy-level uniformity, actual input power, thermal performance, and controllability together.

Lux and lumens weight light according to human visual sensitivity. They can be useful in other contexts but are not interchangeable with PPFD for horticultural comparisons. A generic lux-to-PPFD conversion is especially unreliable when spectra differ.

A practical evaluation method

  1. Define the crop and growing area. Record the actual canopy dimensions, the species and developmental stage, and any height limitations.
  2. Identify a biologically appropriate light target. Required light varies substantially with species, temperature, developmental stage, nutrition, and other environmental conditions. Avoid applying a single PPFD or DLI target universally.
  3. Review the actual PPFD map. Match the published footprint and hanging height to your installation.
  4. Measure multiple points. If equipment is available, use a suitable quantum sensor at canopy height to measure a consistent grid. Average the readings and examine the range, not just the maximum.
  5. Calculate the light dose. Use the grid's representative PPFD and the proposed photoperiod to estimate DLI when output is steady. Recalculate if dimming, mounting height, or photoperiod changes.
  6. Check the complete cost. Compare purchase price with input power, expected daily operating hours, useful lifetime, warranty, replaceability, and electrical safety information.

What changes as plants grow?

The canopy moves closer to a fixed luminaire as plants increase in height, often changing PPFD and uniformity. Dimmable fixtures and adjustable suspension can help manage those changes. Monitor the crop rather than treating the manufacturer's recommended mounting height as a universal constant. More photons are not invariably better: beyond a crop's productive range, additional irradiance may waste energy or contribute to stress.

Choosing equipment with greater confidence

Start with reliable light-distribution information, then select equipment that fits the physical growing space and operational needs. Explore the SilberhazeStore Grow Equipment catalog, including Grow Lights and Controllers & Sensors. These catalog links are starting points, not claims that any particular listed fixture has been independently tested by Silberhaze.

Further reading

Affiliate disclosure: Some equipment listings linked from SilberhazeStore.com direct shoppers to Amazon. Silberhaze may earn from qualifying purchases, at no additional cost to the shopper.

For details about how the store handles external equipment purchases, see Amazon Shopping Help.

Editorial note: This article explains lighting measurements and equipment evaluation. It is not a product test or a universal crop recipe. Figures and recommendations should be checked against the crop, environment, and current equipment specifications.
